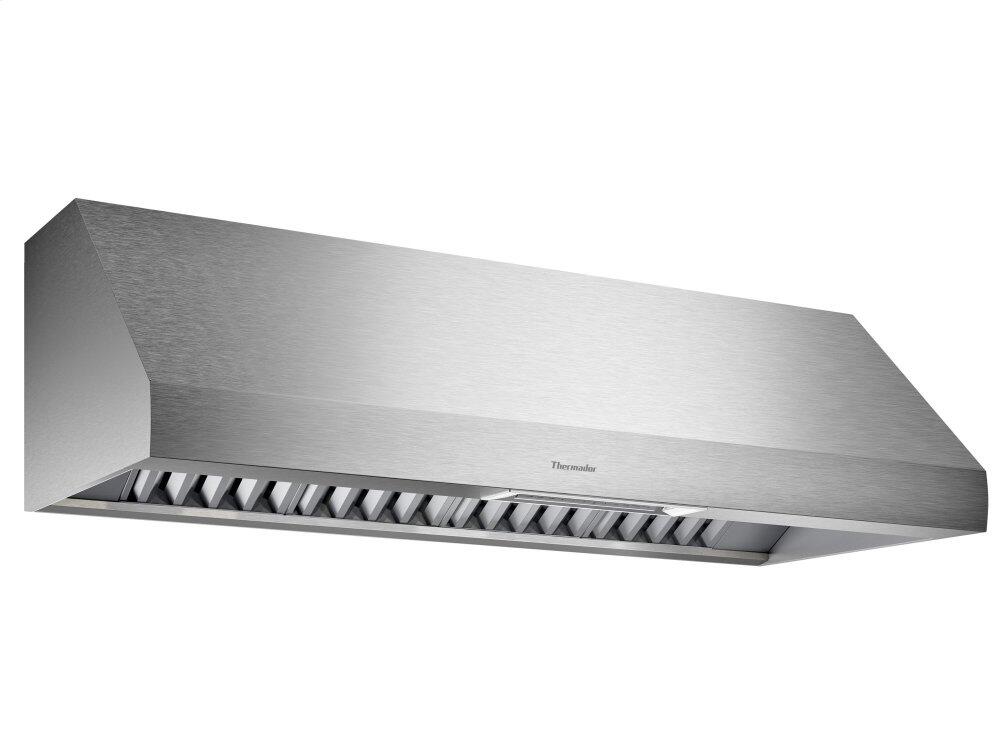

This Thermador Professional® Series 60-inch wide Pro Grand® wall hood adds bold, distinct flair to your kitchen and is crafted to complete the ultimate cooking system, a perfect companion to Pro Grand® ranges. It features the Powerfully Quiet® system that accepts integral, inline, and remote blowers, infrared heat lamps, dishwasher-safe stainless steel commercial-style baffle filters and beautiful illumination with multi-level, vivid LED lights. This model is equipped with the Thermador Connected Experience by Home Connect™.
DELAYED SHUT OFFDelayed shut-off tackles lingering odors for up to 10 minutes
Features
- Ducting Information:
• Diameter of air duct: Top 10"
• Diameter of air duct: Back 10" - Additional Information:

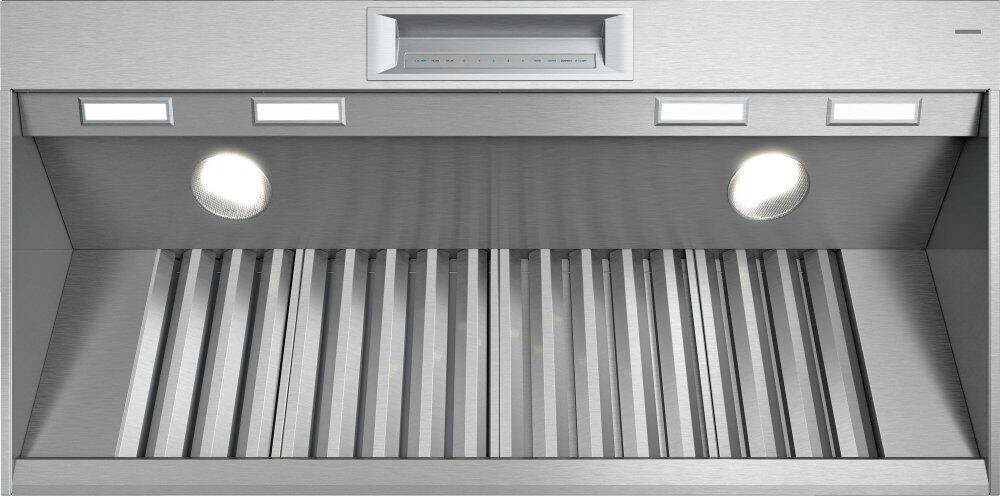

• Multi-level LED lights with fading transitions
• Infrared heat lamps
• Automatic mode
• Check filter reminder light
• Delay shut-off
• Number of lights: 4
• Stainless-steel commercial style baffle filter - Wi-Fi:
Y - Dishwasher-Proof Filters:
Y - Speeds:
4-Stage settings - Technologies:
• Thermador Connected Experience by Home Connect™
• Powerfully Quiet® system
Accessories
- Optional:
• 25 ft. Blower Connector Cable: EXTNCB25W
• EXTNCB25W - For use with the following inline and remote blowers: VTR1030W, VTR1330W, VTI1010W
• Roofplates: RFPLT1000P: For use with 1000 CFM remote blower VTR1030W and 1300 CFM blower VTR1330W
• Built-in remote control panel: REMCPW
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10 - Included:
Damper
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Energy Guide (en)
- Additional documents(en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.

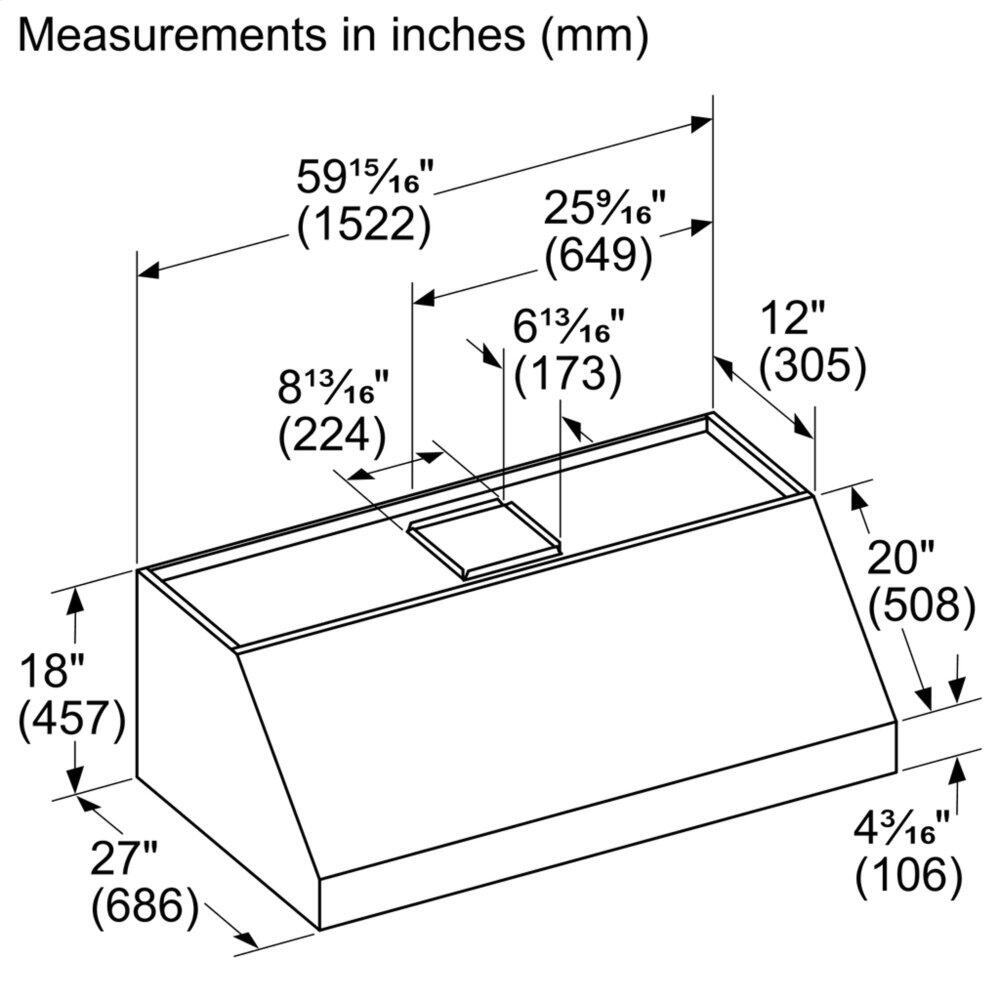

Specifications
UPC#
825225931560Weight
55.79 kgDepth
68.58 cmHeight
45.72 cmWidth
152.4 cmClass Width
60"Additional Dimensions
Required distance above cooktop or range cooking surface: 30"Warranty
2-Year limited warranty on parts and laborOptional
• 25 ft. Blower Connector Cable: EXTNCB25W
• EXTNCB25W - For use with the following inline and remote blowers: VTR1030W, VTR1330W, VTI1010W
• Roofplates: RFPLT1000P: For use with 1000 CFM remote blower VTR1030W and 1300 CFM blower VTR1330W
• Built-in remote control panel: REMCPW
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10Included
DamperSeries Name
ProfessionalStyle
StandardManufacturer Color
Stainless SteelColor
Stainless SteelInstallation
Wall MountBlower Included
NDucting Information
• Diameter of air duct: Top 10"
• Diameter of air duct: Back 10"Additional Information
• Multi-level LED lights with fading transitions
• Infrared heat lamps
• Automatic mode
• Check filter reminder light
• Delay shut-off
• Number of lights: 4
• Stainless-steel commercial style baffle filterWi-Fi
YDishwasher-Proof Filters
YSpeeds
4-Stage settingsTechnologies
• Thermador Connected Experience by Home Connect™
• Powerfully Quiet® systemInformation
• 120 V
• 60 Hz
