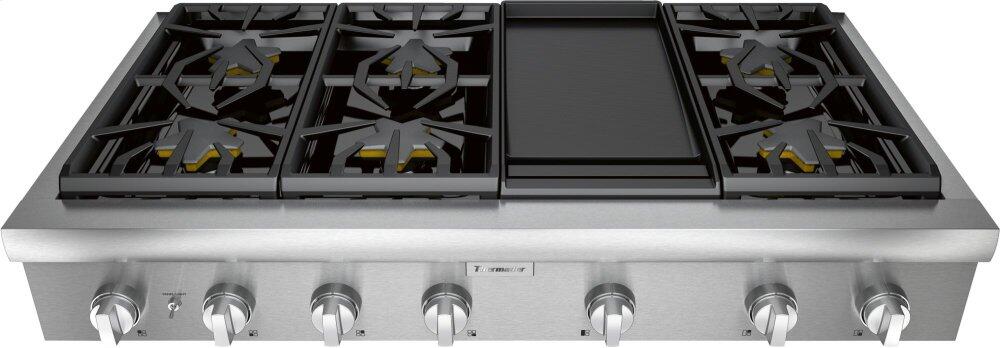

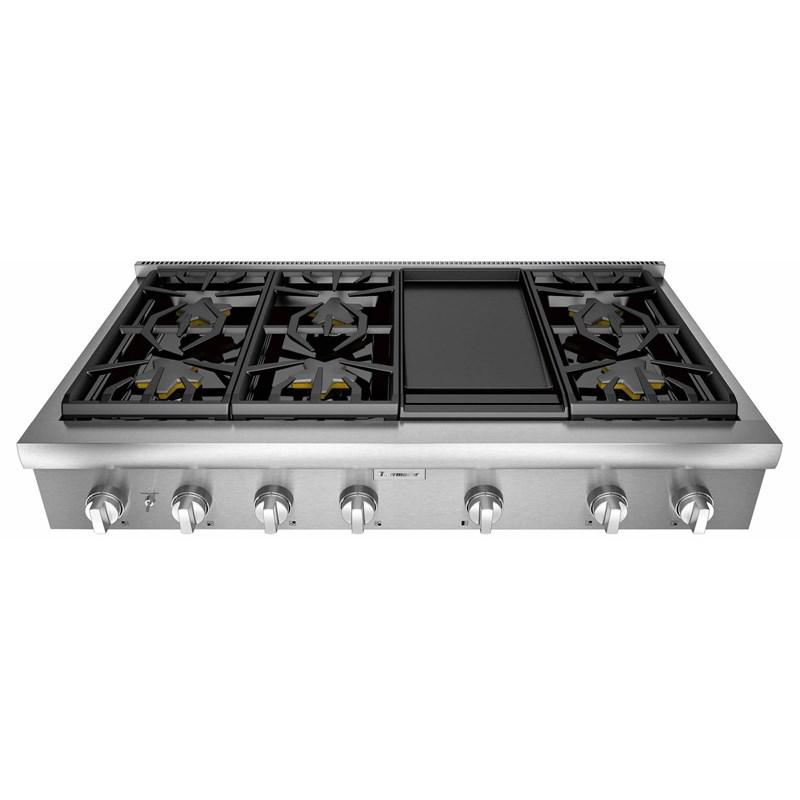

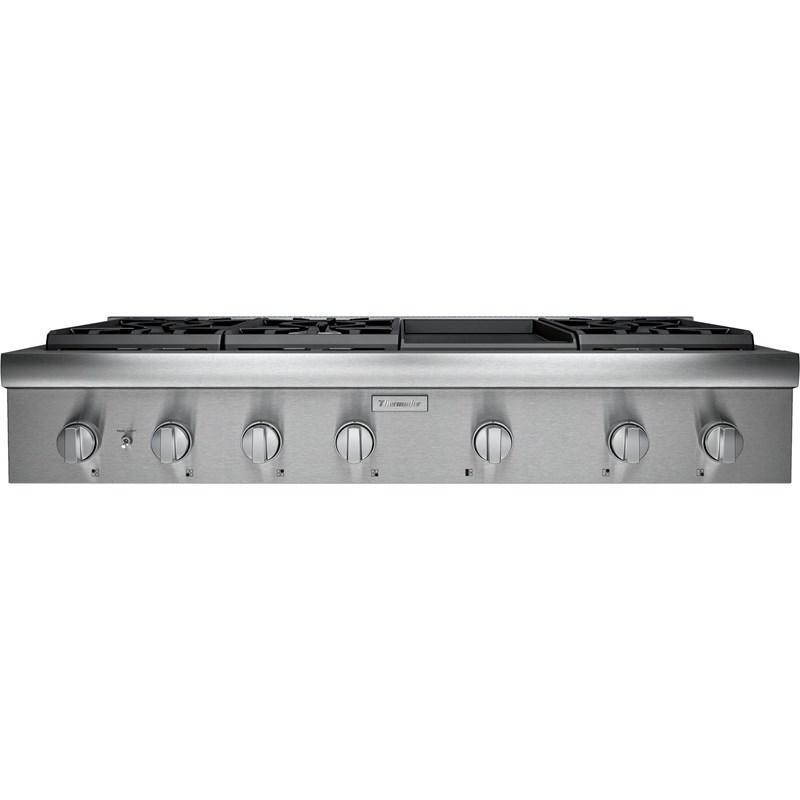

This Thermador 48-inch gas rangetop features 6 burners, a griddle, metal knobs and LED downlighting. It also offers precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® simmer burners.
EXTRALOW®The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
PATENTED STAR BURNER
Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE
QUICKCLEAN BASE
The raised pedestal burner and porcelain maintop have been crafted for perfect integration and easy cleanup. A hand and sponge fit easily under each burner to wipe the surface clean and a teardrop emboss reduces food buildup near the base. THERMADOR EXCLUSIVE
Features
- Technologies:
• Patented Pedestal Star® Burner
• QuickClean Base®
• ExtraLow® Simmer Burners - Additional Information:
• Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
• Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners

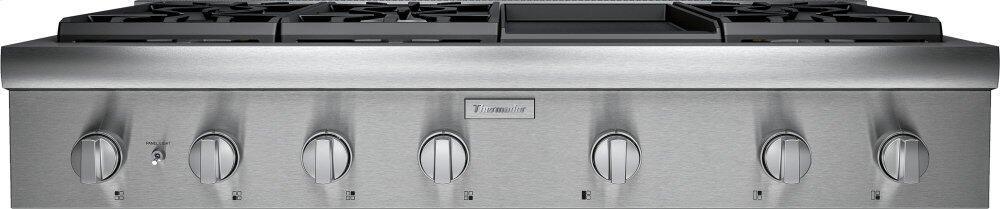

• LED Downlighting—hidden discreetly above the control panel provides functional and stylish illumination
• Superior griddle results—6 pass, 1,630 Watt thermostatically controlled griddle
• Non-stick, rust-proof cast-aluminum griddle, removable for easy cleanup
• Cast iron grates
Accessories
- Optional:
• 12" Grill Plate: PA12GRILLW
• 12" Grill Plate with Fusion Coating: PA12GRILFW
• 12" Pro Griddle Plate with Fusion Coating: PAGRIDLFW
• Griddle Sits on Top of Grates Over 2 Star Burners: PAGRIDDLE
• 12" Pro Grill Cover: PA12LCVRW
• 12" Cutting Board: PA12CHPBLK
• Metallic Blue Knob Kit: PAKNOBLUWR
• Wok Ring: PWOKRINGHC
• LP Conversion Kit: PALPKITHW
• 10" Low Backguard: PA36WLBC
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Information
• 120 V
• 60 Hz
• 15 AHeight
18.4 cmWidth
121.76 cmClass Width
48" or MoreAdditional Dimensions

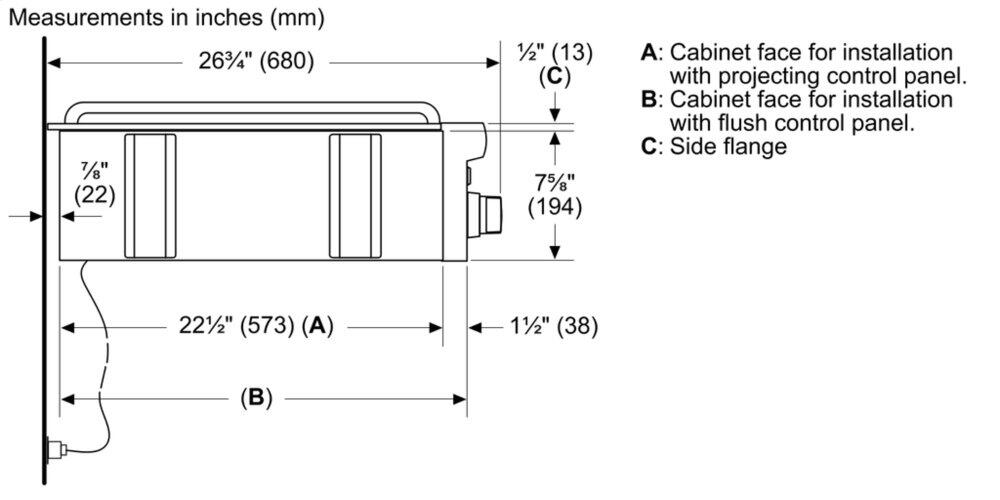

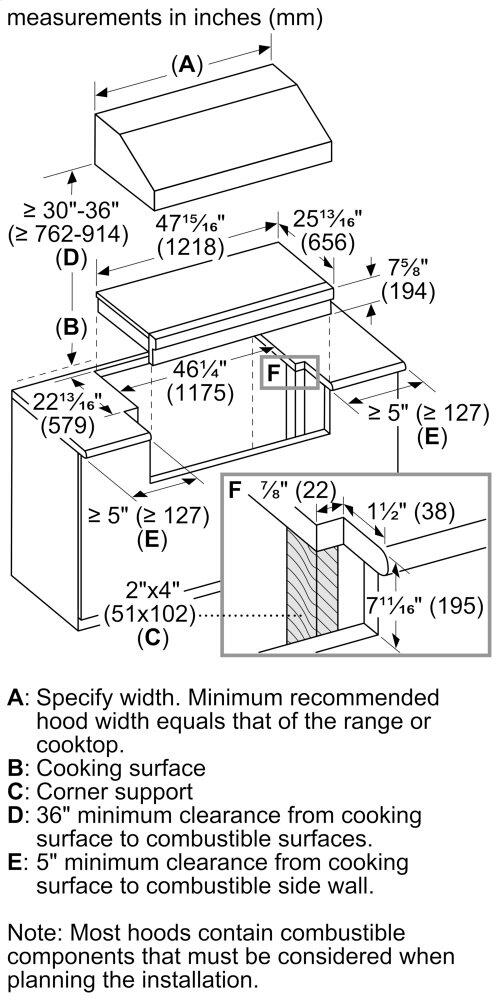

Required Cutout Size (HxWxD): 7 11/16" x 46 1/4" x 22 13/16"Weight
78.02 kgDepth
66.0 cmType
RangetopSeries Name
ProfessionalFuel Type
Natural GasManufacturer Color
Stainless SteelColor
Stainless SteelOptional
• 12" Grill Plate: PA12GRILLW
• 12" Grill Plate with Fusion Coating: PA12GRILFW
• 12" Pro Griddle Plate with Fusion Coating: PAGRIDLFW
• Griddle Sits on Top of Grates Over 2 Star Burners: PAGRIDDLE
• 12" Pro Grill Cover: PA12LCVRW
• 12" Cutting Board: PA12CHPBLK
• Metallic Blue Knob Kit: PAKNOBLUWR
• Wok Ring: PWOKRINGHC
• LP Conversion Kit: PALPKITHW
• 10" Low Backguard: PA36WLBCWarranty
Limited 2 Years Parts and LaborTechnologies
• Patented Pedestal Star® Burner
• QuickClean Base®
• ExtraLow® Simmer BurnersAdditional Information
• Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan
• Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners
• LED Downlighting—hidden discreetly above the control panel provides functional and stylish illumination
• Superior griddle results—6 pass, 1,630 Watt thermostatically controlled griddle
• Non-stick, rust-proof cast-aluminum griddle, removable for easy cleanup
• Cast iron gratesUPC#
825225935537Burners
SealedOther
GriddleBurner/Element Size
12" GriddleBurners/Elements
7Power Output
• Power of Front Left Burner: 18,000 and XLO BTU
• Power of Back Left Burner: 15,000 and XLO BTU
• Power of Back Center Burner: 15,000 BTU
• Power of Front Center Burner: 18,000 BTU
• Power of Center Griddle: 1,630 W
• Power of Back Right Burner: 15,000 BTU
• Power of Front Right Burner: 18,000 BTU
