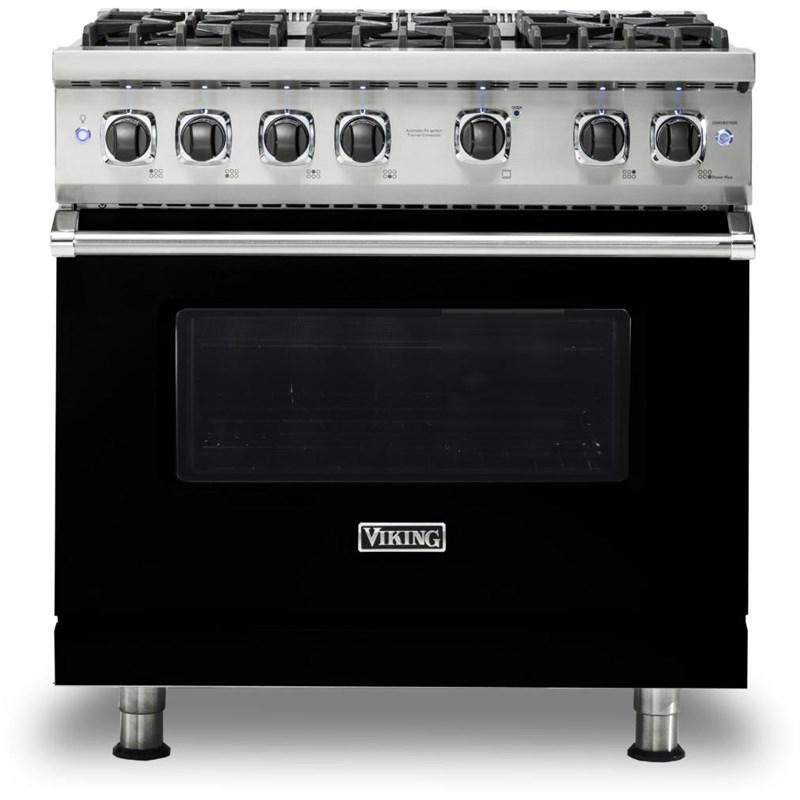

This 36-inch wide Viking, 5 Series gas range with 6 burners. This range features VSH™ Pro sealed burner System, VariSimmer™ setting on all burners, SureSpark™ ignition system and Gourmet-Glo™ gas infrared broiler.
GOURMET-GLO™ GAS INFRARED BROILERLock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
PORCELAINIZED COOKING SURFACE
Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
PROFLOW™ CONVECTION BAFFLE
Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
SURESPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
VARISIMMER™ SETTING
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
VSH™ PRO SEALED BURNER SYSTEM
Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. A combination of a unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
Features
- Technologies:
• VSH™ Pro Sealed Burner System
• VariSimmer™ Setting
• SureSpark™ Ignition System
• Gourmet-Glo™ Gas Infrared Broiler
• Gentle Close™ Door
• ProFlow™ Convection Baffle - Oven Light:
Y - Convection:
Y - Additional Information:
• Porcelainized Cooking Surface
• 6 Oven Rack Positions
• 3 Racks
• Two Halogen Oven Lights
• Broil Burner: 18,000 BTU
• Bake Burner: 30,000 BTU
• Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting
• Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard
• Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Technologies
• VSH™ Pro Sealed Burner System
• VariSimmer™ Setting
• SureSpark™ Ignition System
• Gourmet-Glo™ Gas Infrared Broiler
• Gentle Close™ Door
• ProFlow™ Convection BaffleOven Light
YConvection
YAdditional Information
• Porcelainized Cooking Surface
• 6 Oven Rack Positions
• 3 Racks
• Two Halogen Oven Lights
• Broil Burner: 18,000 BTU
• Bake Burner: 30,000 BTU
• Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting
• Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard
• Heavy-Duty, Porcelainized, Cast-Iron Removable Surface GratesDepth (Without Handles)
65.4 cmHeight
91.1 cmAdditional Dimensions
• Overall Height from Bottom: Base Height to Top of Side Trim – Minimum 35-7/8" (91.1 cm) to Maximum 37" (94 cm); Legs Adjust 1-1/8" (2.9 cm)
• Overall Height from Bottom: Additions to Base Height To top of Island Trim – Add 1" (2.5 cm); to Top of Backguard – Add 8" (15.2 cm); to Top of High Shelf – Add 23 1/2" (59.7 cm)
• Overall Depth from Rear: To end of Side Panel – 24 5/16" (61.8 cm); to Front of Door – 25-3/4" (65.4 cm); to End of Door Handle – 28-11/16" (72.9 cm)Width
91.1 cmDepth (Including Handles)
72.9 cmClass Width
36"Burners
SealedBurners/Elements
6Burners/Elements Output
• (1x) Burner TruPowerPlus™: 18,500 BTU
• (5x) Burners: 15,000 BTUOptional
• 8"H. Backguard – BG8536BSS
• High Shelf – HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P36CRT
• Curb Base and Custom Curb Base Front - P36CBF4
• LP/Propane Conversion Kit - LPKPDRIncluded
Island Trim (shipped standard with 36" range)Series Name
5 SeriesFuel Type
Natural GasAppliance Care
• One-Piece Tooled and Porcelainized Cooking Surface for Easy Cleanup
• Burner Caps are Easily Removable for Quick CleaningInstallation Type
FreestandingManufacturer Color
BlackColor
BlackInformation
• 120 V
• 60 Hz
• 1.5 ANumber of Ovens
SinglePrograms
• Natural Airflow Bake
• Convection Bake
• Infrared Broil
• Convection Infrared Broil
• Convection Dehydrate
• Convection DefrostCapacity (cu. ft.)
5.1 cu.ft.Warranty
• Two-Year Full – Complete Product
• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
• 5-Year Limited – Gas BurnersWeight
226.8 kg
