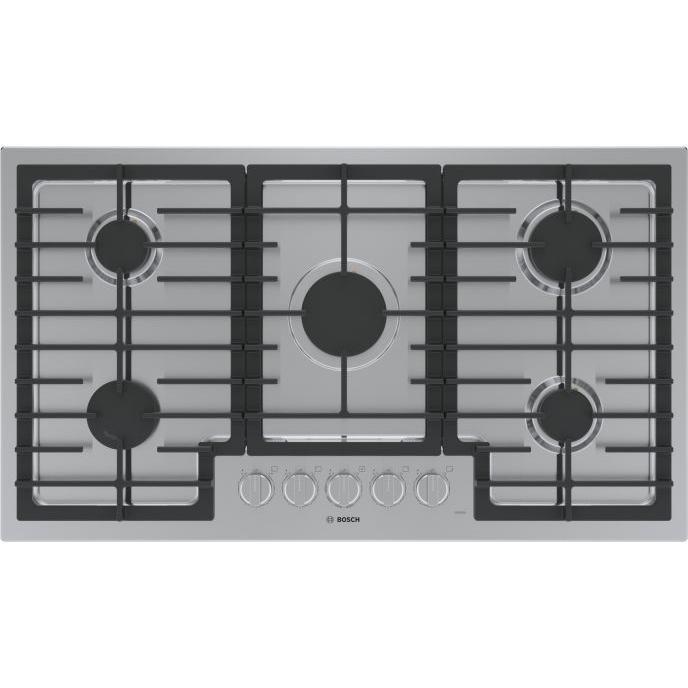

This Bosch 36-inch built-in gas cooktop features 5 sealed burners, sword metal knobs, and 3 cast iron pan supports.
Features
- Additional Information:
• Type of control: Front, sword knobs
• Knob material: Full metal
• Gas type: Natural gas 15 mbar (USA)
• Alternative gas type: Liquid gas 27,5 mbar (USA)
• Location of gas connection: Bottom, rear, right
• Number of double grates: 2
• Number of single grates: 1
• Power on indicator: Yes
Accessories
- Included:
• 1 x nozzle set for liquid gas
• 3 x cast iron pan supports
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Dimensions
Width37"Height3"Depth21"
Finish: Stainless Steel
MPN: NGM5659UC/01
Product Details:
Burners/Elements
5Power Output
• Power of 1st burner: 3400
• Power of 3rd burner: 6000
• Power of 5th burner: 10300Surface Features
Stainless steel cooking surfaceBurners
SealedInformation
• Gas connection rating: 12100 W
• Current: 15 A
• Volts: 120 V
• Frequency: 60 Hz
• Plug type: 120V-3 prong
• LP gas connection rating: 41400
• Natural gas connection rating: 41400Height
9.68 cmWidth
93.98 cmDepth
53.98 cmAdditional Dimensions
• Power cord length: 40" (101.6 cm)
• Minimum height for installation (mm): 486 mm
• Maximum height for installation (mm): 486 mm
• Minimum width for installation (mm): 887 mm
• Maximum width for installation (mm): 887 mm
• Depth for installation (mm): 97 mm
• Minimum distance from counter front: 1 7/8''
• Minimum distance from rear wall: 3''
• Required cutout size (HxWxD): 3 13/16'' x 34 15/16'' x 19 1/8''Class Width
36"Additional Information
• Type of control: Front, sword knobs
• Knob material: Full metal
• Gas type: Natural gas 15 mbar (USA)
• Alternative gas type: Liquid gas 27,5 mbar (USA)
• Location of gas connection: Bottom, rear, right
• Number of double grates: 2
• Number of single grates: 1
• Power on indicator: YesFuel Type
Natural GasType
Built-InSeries Name
500 SeriesManufacturer Color
Stainless SteelColor
Stainless SteelUPC#
825225972594Width
109.55 cmHeight
21.29 cmDepth
62.87 cmIncluded
• 1 x nozzle set for liquid gas
• 3 x cast iron pan supports
UPC: 825225972594
