Café 24-inch Built-In Smart Top Control Dishwasher. Elevate your kitchen with this innovative dishwasher that combines style and intelligence. Equipped with a stainless steel tub for durability and interior lighting for added convenience, this dishwasher goes beyond the basics. The smart features allow you to control and monitor your dishwasher from anywhere using your smartphone or voice commands.
LUMINOUS LED LIGHTSShine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.
39 DBA DISHWASHER
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.
CUSTOMFIT TOP RACK WITH ULTRA WASH.
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

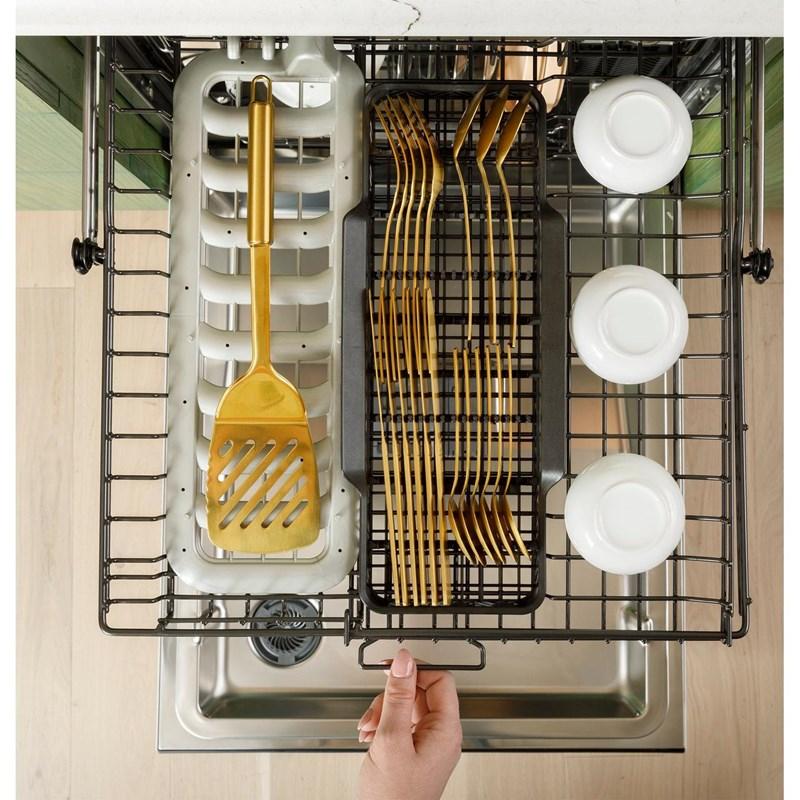

CUSTOMFIT BASKET WITH ULTRA WASH
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.
CUSTOMFIT LID CADDY
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
SMART FEATURES POWERED BY SMARTHQ™
Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
Features
- Control Lock:
Y - Filtration System:
Y - Additional Information:
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Dual Convection Ultra Dry
• Ultra/Normal/Off
• Fan Assist Dry
• Interior Lighting: 4 - Café Expression
• Latch: Pull with Handle
• Leveling System: 3 Point Leveling
• Racking Material: Nylon
• Showroom Power Mode
• Top Rack/3rd Rack: Washing, Sliding 3rd Rack w/ removable caddy
• Lower Rack:
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• 1 Rack handle
• Dispenser:
• Rinse Aid with Indicator and Adjustment
• Electronic Low Rinse Aid Sensor
• Rack Features:
• Lid Manager
• Ball-Tipped Tines
• Adjustable Upper Rack
• Full Extension Slides - Upper
• Cafe Flex Silverware Basket
• Upper Rack:
• Premium Height Adjustable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold-down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Smooth Glide Upper Rack
• Lid Manager
• Wash Arms:
• 4 Wash Levels
• Lower
• Middle
• Upper
• 3rd Rack
• Bottle Jets
• Deep Clean Silverware Jets
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Bottle Jets (4)
• Middle Wash Arm
• Lower Wash Arm
• Automatic Temperature Control
• Drain Pump
• Hard Food Disposer with removable filter
• Deep Clean Silverware Jets
• 90+ Spray Jet Wash System
• Side Jets
• Hidden Heater
• Automatic HotStart - Delay Start Information:
1-12 Hours - 3rd Rack System:
Y - Technologies:
100% Filtration with Hard Food Disposer and Removable FilterBuilt-in Wi-Fi ConnectActive Flood ProtectLeak Defense with Active Flood ProtectAssist/WiFI/Remote Enabled - Delay Start:
Y - Wi-Fi:
Y
Accessories
- Optional:
• CXADTH1PVBZ: Brushed Bronze Kit - 1 handle
• CXADTH1PVBT: Brushed Black Kit - 1 handle
• CXADTH1PVCU: Brushed Copper Kit - 1 handle
• CXADTH1PVFB: Flat Black Kit - 1 handle
• CXCG1K0PMCG: Brushed Brass Kit - 6 knobs - Included:
CXADTH1PVSS: Brushed Stainless Steel Kit - 1 handle
Documents
Specifications
Energy Star Certified
YUL Listed
YInformation
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separatelyType
Built-InSilence Rating
39 dBTub Material
Stainless SteelPlace Settings
16Series Name
800 SeriesManufacturer Color
Stainless SteelColor
Stainless SteelWash Cycles
• Auto Wash
• Cookware
• Normal
• Gentle
• Express
• Cascade Platinum Plus (on app)Number of Cycles
6Options
• Delay Start 1-12 Hr.
• Bottle Wash (on app)
• Wash Zones/Half Load (on app)
• Favorites (on app)
• WiFi/Remote Enabled
• Sabbath Mode
• Start/Cancel
• Favorites
• Presoak + Sanitize (Certified to NSF Standard 184)
• Hi-Temp Wash
• Silverware Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock ControlsControl Lock
YFiltration System
YAdditional Information
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Dual Convection Ultra Dry
• Ultra/Normal/Off
• Fan Assist Dry
• Interior Lighting: 4 - Café Expression
• Latch: Pull with Handle
• Leveling System: 3 Point Leveling
• Racking Material: Nylon
• Showroom Power Mode
• Top Rack/3rd Rack: Washing, Sliding 3rd Rack w/ removable caddy
• Lower Rack:
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• 1 Rack handle
• Dispenser:
• Rinse Aid with Indicator and Adjustment
• Electronic Low Rinse Aid Sensor
• Rack Features:
• Lid Manager
• Ball-Tipped Tines
• Adjustable Upper Rack
• Full Extension Slides - Upper
• Cafe Flex Silverware Basket
• Upper Rack:
• Premium Height Adjustable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold-down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Smooth Glide Upper Rack
• Lid Manager
• Wash Arms:
• 4 Wash Levels
• Lower
• Middle
• Upper
• 3rd Rack
• Bottle Jets
• Deep Clean Silverware Jets
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Bottle Jets (4)
• Middle Wash Arm
• Lower Wash Arm
• Automatic Temperature Control
• Drain Pump
• Hard Food Disposer with removable filter
• Deep Clean Silverware Jets
• 90+ Spray Jet Wash System
• Side Jets
• Hidden Heater
• Automatic HotStartDelay Start Information
1-12 Hours3rd Rack System
YTechnologies
100% Filtration with Hard Food Disposer and Removable FilterBuilt-in Wi-Fi ConnectActive Flood ProtectLeak Defense with Active Flood ProtectAssist/WiFI/Remote EnabledDelay Start
YWi-Fi
YInformation
• 120 V
• 60 Hz
• 10.2 AWidth
60.32 cmHeight (Min.)
86.36 cmDepth (Without Handle)
60.96 cmWeight
56.25 kgAdditional Dimensions
Height w/Legs Extended - Maximum Height: 34.625 inDepth (Including Handle)
60.96 cmClass Width
24"UPC#
084691914594Warranty
Limited 1 Year Parts and LaborWeight
62.14 kgWidth
62.23 cmHeight
89.66 cmDepth
70.87 cmOptional
• CXADTH1PVBZ: Brushed Bronze Kit - 1 handle
• CXADTH1PVBT: Brushed Black Kit - 1 handle
• CXADTH1PVCU: Brushed Copper Kit - 1 handle
• CXADTH1PVFB: Flat Black Kit - 1 handle
• CXCG1K0PMCG: Brushed Brass Kit - 6 knobsIncluded
CXADTH1PVSS: Brushed Stainless Steel Kit - 1 handle
