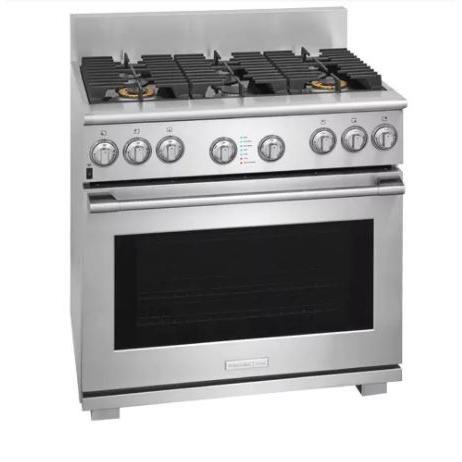

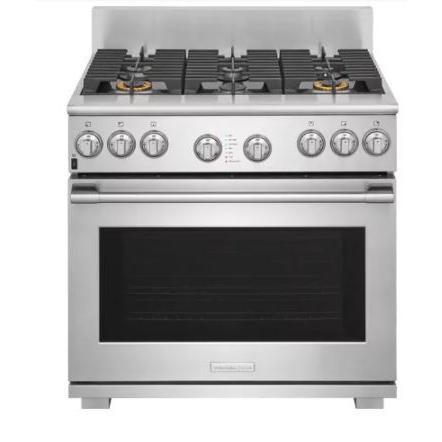

This Electrolux Icon 36" dual-fuel range features a 6.4 cu.ft. oven capacity, convection bake, a self-clean oven and 6 gas burners.
MIN-2-MAX BURNERS®With the widest range of BTU performance in the industry, these best-in-class dual-flame sealed burners offer unrivaled versatility — from a roaring 18,000-BTU boil to a gentle 450-BTU simmer.
SMOOTH-GLIDE® OVEN RACKS
Ball bearing oven racks glide with unparalled ease and extend fully for effortless access.
CUSTOMCONVECT3™ CONVECTION TECHNOLOGY
Distributes heat evenly throughout the oven by adding a third cooking element plus a variable speed fan.
Features
- Self-Cleaning:
Y - Downdraft Ventilation:
N - Convection:
Y - Additional Information:
• Bake Element (Watts): 3,000
• Broil Element (Watts): 4,000
• Convection Element (Watts): 2,500
• Signature Cobalt Blue Oven Interior
• Self-Clean with Door Lock
• Extra-Large Oven Window
• Halogen Oven Light
• Eight-Pass Bake & Broil Elements
• 2 Smooth-Glide® Oven Racks
• 1 Conventional Rack
• Hidden Bake Element - Technologies:
• Smooth-Glide
• CustomConvect³™ - Wi-Fi:
N - Oven Light:
Y
Accessories
- Included:
• Broiler Pan and Insert
• Stainless Steel Cleaner
• Wok Ring
• LP Gas Conversion Kit
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Capacity (cu. ft.)
6.4 cu. ft.Number of Ovens
SingleBurners/Elements Output
• Center Front: 14000 BTU
• Center Rear: 9500 BTU
• Left Front: 1100 - 18000 BTU (Dual Flame)
• Left Rear: 14000 BTU
• Right Front: 750 - 18000 BTU (Dual Flame)
• Right Rear: 850 - 5000 BTUBurners/Elements
6Other
WokBurners
SealedDepth (Without Handles)
69.85 cmWidth
91.1 cmHeight
105.7 cmWeight
163.29 kgClass Width
36"Depth (Including Handles)
73.03 cmSelf-Cleaning
YDowndraft Ventilation
NConvection
YAdditional Information
• Bake Element (Watts): 3,000
• Broil Element (Watts): 4,000
• Convection Element (Watts): 2,500
• Signature Cobalt Blue Oven Interior
• Self-Clean with Door Lock
• Extra-Large Oven Window
• Halogen Oven Light
• Eight-Pass Bake & Broil Elements
• 2 Smooth-Glide® Oven Racks
• 1 Conventional Rack
• Hidden Bake ElementTechnologies
• Smooth-Glide
• CustomConvect³™Wi-Fi
NOven Light
YInformation
• 240 Volts
• 60 Hertz
• 17 AmpsInstallation Type
FreestandingFuel Type
Dual Fuel - Natural GasColor
Stainless SteelSeries Name
ProfessionalManufacturer Color
Stainless SteelWeight
183.71 kgWarranty
1 YearIncluded
• Broiler Pan and Insert
• Stainless Steel Cleaner
• Wok Ring
• LP Gas Conversion KitSabbath/Star-K
N
